Self-Organising Maps for Customer Segmentation using R

1. Select the size and type of the map. The shape can be hexagonal or square, depending on the shape of the nodes your require. Typically, hexagonal grids are preferred since each node then has 6 immediate neighbours.
2. Initialise all node weight vectors randomly.
3. Choose a random data point from training data and present it to the SOM.
4. Find the “Best Matching Unit” (BMU) in the map – the most similar node. Similarity is calculated using the Euclidean distance formula.
5. Determine the nodes within the “neighbourhood” of the BMU.
   – The size of the neighbourhood decreases with each iteration.
6. Adjust weights of nodes in the BMU neighbourhood towards the chosen datapoint.
   – The learning rate decreases with each iteration.
   – The magnitude of the adjustment is proportional to the proximity of the node to the BMU.
7. Repeat Steps 2-5 for N iterations / convergence.

Sample equations for each of the parameters described here are given on Slideshare.

SOMs in R

Training

The “kohonen” package is a well-documented package in R that facilitates the creation and visualisation of SOMs. To start, you will only require knowledge of a small number of key functions, the general process in R is as follows (see the presentation slides for further details):

# Creating Self-organising maps in R
# Load the kohonen package
require(kohonen)

# Create a training data set (rows are samples, columns are variables
# Here I am selecting a subset of my variables available in "data"
data_train <- data[, c(2,4,5,8)]

# Change the data frame with training data to a matrix
# Also center and scale all variables to give them equal importance during
# the SOM training process.
data_train_matrix <- as.matrix(scale(data_train))

# Create the SOM Grid - you generally have to specify the size of the
# training grid prior to training the SOM. Hexagonal and Circular
# topologies are possible
som_grid <- somgrid(xdim = 20, ydim=20, topo="hexagonal")

# Finally, train the SOM, options for the number of iterations,
# the learning rates, and the neighbourhood are available
som_model <- som(data_train_matrix,
		grid=som_grid,
		rlen=500,
		alpha=c(0.05,0.01),
		keep.data = TRUE )

Visualisation

The kohonen.plot function is used to visualise the quality of your generated SOM and to explore the relationships between the variables in your data set. There are a number different plot types available. Understanding the use of each is key to exploring your SOM and discovering relationships in your data.

1. Training Progress:
   As the SOM training iterations progress, the distance from each node’s weights to the samples represented by that node is reduced. Ideally, this distance should reach a minimum plateau. This plot option shows the progress over time. If the curve is continually decreasing, more iterations are required.

   #Training progress for SOM
   plot(som_model, type="changes")




2. Node Counts
   The Kohonen packages allows us to visualise the count of how many samples are mapped to each node on the map. This metric can be used as a measure of map quality – ideally the sample distribution is relatively uniform. Large values in some map areas suggests that a larger map would be benificial. Empty nodes indicate that your map size is too big for the number of samples. Aim for at least 5-10 samples per node when choosing map size.

   #Node count plot
   plot(som_model, type="count", main="Node Counts")




3. Neighbour Distance
   Often referred to as the “U-Matrix”, this visualisation is of the distance between each node and its neighbours. Typically viewed with a grayscale palette, areas of low neighbour distance indicate groups of nodes that are similar. Areas with large distances indicate the nodes are much more dissimilar – and indicate natural boundaries between node clusters. The U-Matrix can be used to identify clusters within the SOM map.

   # U-matrix visualisation
   plot(som_model, type="dist.neighbours", main = "SOM neighbour distances")




4. Codes / Weight vectors
   Thenode weight vectors, or “codes”, are made up of normalised values of the original variables used to generate the SOM. Each node’s weight vector is representative / similar of the samples mapped to that node. By visualising the weight vectors across the map, we can see patterns in the distribution of samples and variables. The default visualisation of the weight vectors is a “fan diagram”, where individual fan representations of the magnitude of each variable in the weight vector is shown for each node. Other represenations are available, see the kohonen plot documentation for details.

   # Weight Vector View
   plot(som_model, type="codes")




5. Heatmaps
   Heatmaps are perhaps the most important visualisation possible for Self-Organising Maps. The use of a weight space view as in (4) that tries to view all dimensions on the one diagram is unsuitable for a high-dimensional (>7 variable) SOM. A SOM heatmap allows the visualisation of the distribution of a single variable across the map. Typically, a SOM investigative process involves the creation of multiple heatmaps, and then the comparison of these heatmaps to identify interesting areas on the map. It is important to remember that the individual sample positions do not move from one visualisation to another, the map is simply coloured by different variables.
   The default Kohonen heatmap is created by using the type “heatmap”, and then providing one of the variables from the set of node weights. In this case we visualise the average education level on the SOM.

   # Kohonen Heatmap creation
   plot(som_model, type = "property", property = getCodes(som_model)[,4], main=colnames(getCodes(som_model))[4], palette.name=coolBlueHotRed)




   It should be noted that this default visualisation plots the normalised version of the variable of interest. A more intuitive and useful visualisation is of the variable prior to scaling, which involves some R trickery – using the aggregate function to regenerate the variable from the original training set and the SOM node/sample mappings. The result is scaled to the real values of the training variable (in this case, unemployment percent).

   # Unscaled Heatmaps
   #define the variable to plot
   var_unscaled <- aggregate(as.numeric(data_train[,var]), by=list(som_model$unit.classif), FUN=mean, simplify=TRUE)[,2]
   plot(som_model, type = "property", property=var_unscaled, main=colnames(getCodes(som_model))[var], palette.name=coolBlueHotRed)

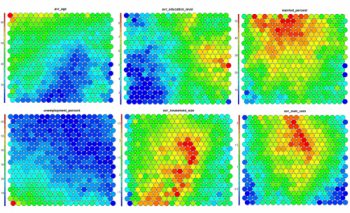

   It is noteworthy that the heatmaps above immediately show an inverse relationship between unemployment percent and education level in the areas around Dublin. Further heatmaps, visualised side by side, can be used to build up a picture of the different areas and their characteristics.



   Aside: Heatmaps with empty nodes in your SOM grid
   In some cases, your SOM training may result in empty nodes in the SOM map. In this case, you won’t have a way to calculate mean values for these nodes in the “aggregate” line above when working out the unscaled version of the map. With a few additional lines, we can discover what nodes are missing from the som_model$unit.classif and replace these with NA values – this step will prevent empty nodes from distorting your heatmaps.

   # Plotting unscaled variables when you there are empty nodes in the SOM
   var_unscaled <- aggregate(as.numeric(data_train_raw[[variable]]), by=list(som_model$unit.classif), FUN=mean, simplify=TRUE)
   names(var_unscaled) <- c("Node", "Value")
   # Add in NA values for non-assigned nodes - first find missing nodes:
   missingNodes <- which(!(seq(1,nrow(som_model$codes)) %in% var_unscaled$Node))
   # Add them to the unscaled variable data frame
   var_unscaled <- rbind(var_unscaled, data.frame(Node=missingNodes, Value=NA))
   # order the resulting data frame
   var_unscaled <- var_unscaled[order(var_unscaled$Node),]
   # Now create the heat map only using the "Value" which is in the correct order.
   plot(som_model, type = "property", property=var_unscaled$Value, main=names(data_train)[var], palette.name=coolBlueHotRed)

Clustering and Segmentation on top of Self-Organising Map

Clustering can be performed on the SOM nodes to isolate groups of samples with similar metrics. Manual identification of clusters is completed by exploring the heatmaps for a number of variables and drawing up a “story” about the different areas on the map. An estimate of the number of clusters that would be suitable can be ascertained using a kmeans algorithm and examing for an “elbow-point” in the plot of “within cluster sum of squares”.  The Kohonen package documentation shows how a map can be clustered using hierachical clustering. The results of the clustering can be visualised using the SOM plot function again.

# Viewing WCSS for kmeans
mydata <- som_model$codes
wss <- (nrow(mydata)-1)*sum(apply(mydata,2,var))
for (i in 2:15) {
  wss[i] <- sum(kmeans(mydata, centers=i)$withinss)
}
plot(wss)

# Visualising cluster results
## use hierarchical clustering to cluster the codebook vectors
som_cluster <- cutree(hclust(dist(som_model$codes)), 6)
# plot these results:
plot(som_model, type="mapping", bgcol = pretty_palette[som_cluster], main = "Clusters")
add.cluster.boundaries(som_model, som_cluster)

Ideally, the clusters found are contiguous on the map surface. However, this may not be the case, depending on the underlying distribution of variables. To obtain contiguous cluster, a hierachical clustering algorithm can be used that only combines nodes that are similar AND beside each other on the SOM grid. However, hierachical clustering usually suffices and any outlying points can be accounted for manually.

Mapping clusters back to original samples

When a clustering algorithm is applied as per the code example above, clusters are assigned to each of the nodes on the SOM map, rather than the original samples in the dataset. The key to assign labels to the original data is in using the som_cluster variable that maps nodes, with the som_model$unit.classif variable that maps data samples to nodes:

# get vector with cluster value for each original data sample
cluster_assignment <- som_cluster[som_model$unit.classif]
# for each of analysis, add the assignment as a column in the original data:
data$cluster <- cluster_assignment

Use the statistics and distributions of the training variables within each cluster to build a meaningful picture of the cluster characteristics – an activity that is part art, part science! The clustering and visualisation procedure is typically an iterative process. Several SOMs are normally built before a suitable map is created. It is noteworthy that the majority of time used during the SOM development exercise will be in the visualisation of heatmaps and the determination of a good “story” that best explains the data variations.

Conclusions

Self-Organising Maps (SOMs) are another powerful tool to have in your data science repertoire. Advantages include: –

• Intuitive method to develop customer segmentation profiles.
• Relatively simple algorithm, easy to explain results to non-data scientists
• New data points can be mapped to trained model for predictive purposes.

Disadvantages include:

• Lack of parallelisation capabilities for VERY large data sets since the training data set is iterative
• It can be difficult to represent very many variables in two dimensional plane
• SOM training requires clean, numeric data which can be hard to get!

Please do explore the slides and code (2014-01 SOM Example code_release.zip) from the talk for more detail. Contact me if you there are any problems running the example code etc.
